Labworks Inc.- VL-144/145 Digital Vibration Controllers

Labworks VibeLab Controllers:
Unmatched in Performance/Cost Value

Demonstration software [28MB]

VL-144/
VL-145

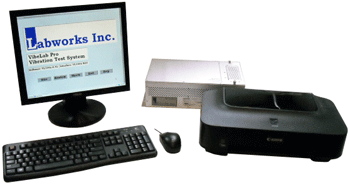

  - Comes completely assembled and tested with everything you need including
     computer, software, monitor, printer, keyboard, and accelerometer with built-in
     signal conditioning. NOT A KIT, ready to run.

- Straightforward Virtual Instrument operating under Windows™

- Automatic profile calculation of acceleration, velocity, and displacement

- Vibration Test System capabilities automatically cross checked with programmed test

- Accelerometer sensitivity automatically cross checked with programmed test

- Complete and detailed online help for both novice and experienced users

- Password protection and extensive report generating capabilities

VL-144x VibeLab Pro

Full Featured, Dual Input Channel, Sine, Random and Shock Vibration Controller

• Control on either input channel, average, or extremel (acceleration or force on ch2)

• Plot all normal functions plus channel to channel transmissibility

• Plot channel to drive transmissibility

• Accelerometer calibration mode

• Sine resonance search and dwell

• Selectable resolution/bandwidth in random

• Classical Shock + MILSTD 810 SRS

• Three level password access w/individual function lockout

• Full Kurtosis peak acceleration control in random

VL-145x VibeLab Standard

Single Input Channel, Sine and Random Vibration Controller

• Plot input, control and drive data

• Save and recall test profiles (programs)

• Save and recall individual test runs

• 2 to 10,000 Hz swept Sine control

• 5 to 2,000 Hz Random vibration control

VL-145s VibeLab Sine

Single Input Channel, Swept Sine Controller

VL-145r VibeLab Random

Single Input Channel, Random Vibration Controller

Sine Vibration Controller (VL-144x, VL-145x, VL-145s)

Sine Test Programming Screen

Sine Test Run Screen

Random Vibration Controller (VL-144x, VL-145x, VL-145r)

Random Test Programming Screen

Random Test Run Screen

Classical Shock Vibration Controller (VL-144x)

Shock Test Programming Screen

Shock Test Run Screen
